BPM Pro 2 - Fitting the Cuff
The BPM Pro 2 uses a detachable FlexiFit cuff, allowing you to select the correct size for your arm. Your BPM Pro 2 comes standard with the Adult Large Cuff, which fits arm circumferences from 22 to 42 cm (approximately 8.7 to 16.5 inches). If you are concerned about your cuff size and think you may need a larger cuff, please contact the program that provided you with the device.
How to fit your cuff properly:
- Slip your arm into the cuff until it is wrapped around your bicep at the same level as your heart, approximately 1 inch above your elbow.
- Ensure the tube is extending down toward your hand and is aligned with the artery on the inside of your elbow.
- Look for the Index arrow (pointing down) and the two OK arrows on your cuff.
- Tighten the cuff until it is comfortably tight.
- Ensure the Index arrow falls between the two OK arrows.
Note: If you cannot make it fit, your cuff may be too large or too small. In this case, please contact support.
An XL FlexiFit cuff is available that can fit a 15¾ to 20½ inch (40 to 52 cm) arm circumference.

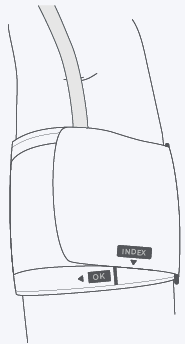

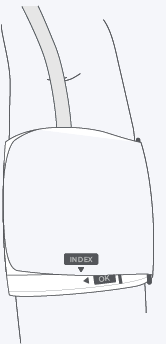

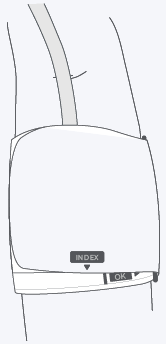

Correct cuff size | Cuff is too large | Cuff is too small |
